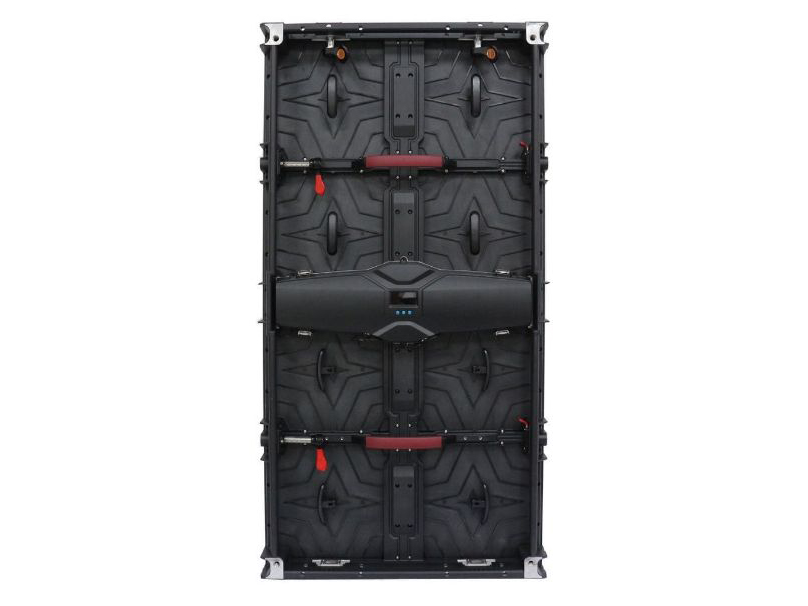

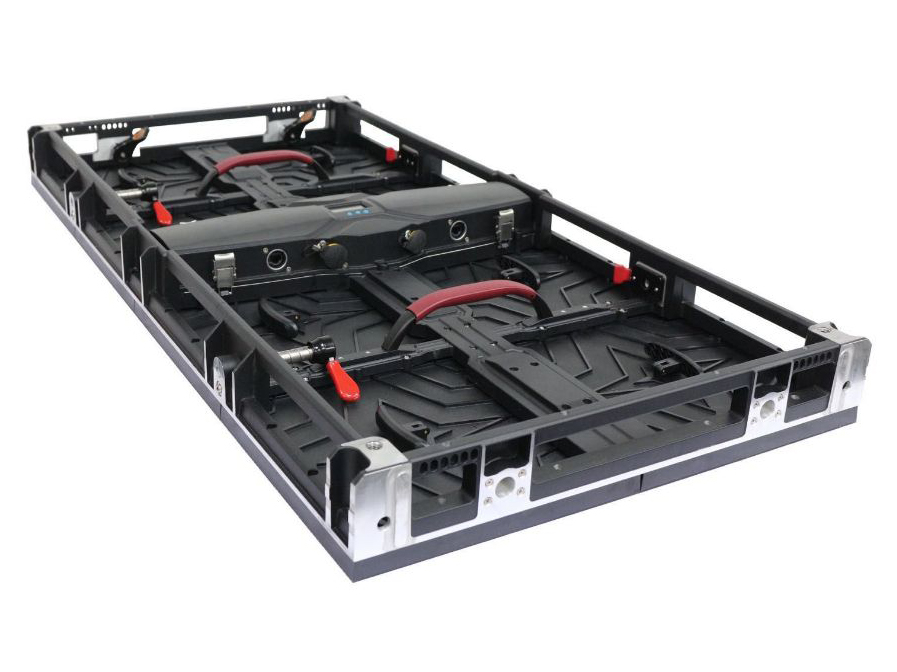

Outdoor Rental Front service LED Screen

Home » Product » Outdoor Rental Front service LED Screen

Outdoor Front service LED Screen, Waterproof rating IP65/54.

Category: Accessories

Pixel Pitch	2.604mm	2.98mm	3.91mm	4.81mm	5.95mm
Physical Density	147456/㎡	112896/㎡	65536/㎡	43264/㎡	28224/㎡
LED Shape	SMD1415	SMD1415	SMD1921	SMD1921	SMD2727
LED Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Drive Mode	1/32 Scan	1/28 Scan	1/16 Scan	1/13 Scan	1/7 Scan
Cabinet Size	500x500x83mm	500x1000x83mm	500x1000x83mm	500x1000x83mm	500x1000x83mm
Cabinet Resolution	192x192	168x336	128x256	104x208	84x168
Cabinet Weight	8.5kg/pc	13.5kg/pc	13.5kg/pc	13.5kg/pc	13.5kg/pc
Brightness	≥4500cd/㎡	≥4500cd/㎡	≥5000cd/㎡	≥5000cd/㎡	≥5500cd/㎡
Contrast	≥5000:1	≥5000:1	≥5000:1	≥5000:1	≥5000:1
Viewing angle(H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
View Distance	≥2.6m	≥3m	≥4m	≥5m	≥6m
Gray Scale	16bits	16bits	16bits	16bits	16bits
Color Capacity	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Maximum Power	200 W/PC	400 W/PC	400 W/PC	400 W/PC	400 W/PC
Average Power	80 W/PC	150 W/PC	150 W/PC	150 W/PC	150 W/PC
Input voltage	110 / 220V	110 / 220V	110 / 220V	110 / 220V	110 / 220V
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Working Temperature	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)
Operating Humidity	10-90% RH	10-90% RH	10-90% RH	10-90% RH	10-90% RH
Life Span	100,000Hours	100,000Hours	100,000Hours	100,000Hours	100,000Hours
IP rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54
Service	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear
