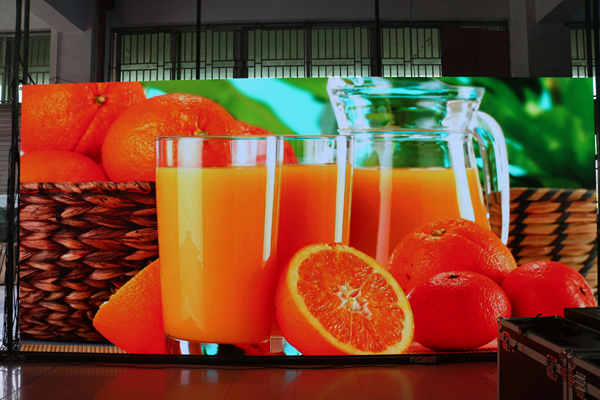

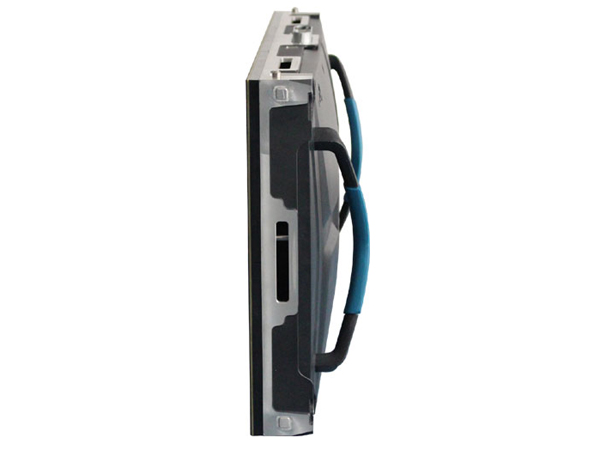

HD Front service LED Display
HD Front service LED Display
HD Front service LED Display, front service LED screen, HD video wall
| Pixel Pitch | 1.25mm | 1.56mm | 1.875mm |
|---|---|---|---|
| Physical Density | 640000/㎡ | 410898/㎡ | 286225/㎡ |
| LED Shape | SMD1010 | SMD1010 | SMD1010 / 1515 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Drive Mode | 1/27 Scan | 1/27 Scan | 1/30 Scan |
| Cabinet Size | 600x337.5x52mm | 600x337.5x52mm | 600x337.5x52mm |
| Cabinet Resolution | 480x270 | 384x216 | 320x180 |
| Cabinet Weight | 8.5kg/pc | 8.5kg/pc | 8.5kg/pc |
| Brightness | ≥800cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ |
| Contrast | ≥8000:1 | ≥8000:1 | ≥8000:1 |
| Viewing angle(H/V) | 160?/160? | 160?/160? | 160?/160? |
| Min View Distance | 1.2m | 1.5m | 1.8m |
| Gray Scale | 16bits | 16bits | 16bits |
| Color Capacity | 281 trillion | 281 trillion | 281 trillion |
| Maximum Power | 420 W/M2 | 420 W/M2 | 420 W/M2 |
| Average Power | 100 W/M2 | 100 W/M2 | 100 W/M2 |
| Viewing angle(H/V) | 170°/170° | 170°/170° | 170°/170° |
| Input voltage | AC100 - 240V, 50-60Hz | AC100 - 240V, 50-60Hz | AC100 - 240V, 50-60Hz |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Working Temperature | (-20℃～+50℃) | (-20℃～+50℃) | (-20℃～+50℃) |
| Operating Humidity | 10-90% RH | 10-90% RH | 10-90% RH |
| Service | Front maintenance | Front maintenance | Front maintenance |
| Life Span | 100,000Hours | 100,000Hours | 100,000Hours |
| IP rating(Front/Rear) | IP31/IP31 | IP31/IP31 | IP31/IP31 |
