Double side Slim LED display

Home » Product » Double side Slim LED display

Double side Slim LED display, Double side Slim LED screen, Double side front service screen.

Category: Accessories

Pixel Pitch	1.95mm	2.5mm	2.6mm	2.97mm	3.91mm
Physical Density	262144/㎡	160000/㎡	147456/㎡	112896/㎡	65536/㎡
LED Shape	SMD1515	SMD1515	SMD1515	SMD1515	SMD2020
LED Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Drive Mode	1/32 Scan	1/25Scan	1/32Scan	1/28 Scan	1/16 Scan
Cabinet Resolution	512x128	400x100	384x96	336x84	256x64
Cabinet Size	1000x250x53mm	1000x250x53mm	1000x250x53mm	1000x250x53mm	1000x250x53mm
Cabinet Weight	7.7KG/PC	7.7KG/PC	7.7KG/PC	7.7KG/PC	7.7KG/PC
Brightness	≥700cd/㎡	≥800cd/㎡	≥800-1000cd/㎡	≥1200cd/㎡	≥1200cd/㎡
Contrast	≥5000:1	≥5000:1	≥5000:1	≥5000:1	≥5000:1
Viewing angle(H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Min View Distance	2m	2.5m	2.6m	3m	4m
Gray Scale	16bits	16bits	16bits	16bits	16bits
Color Capacity	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Maximum Power	800W/m2	800W/m2	800W/m2	800W/m2	800W/m2
Average Power	100-200W/㎡	100-200W/㎡	100-200W/㎡	100-200W/㎡	100-200W/㎡
Input voltage	AC110 / 220V	AC110 / 220V	AC110 / 220V	AC110 / 220V	AC110 / 220V
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Working Temperature	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)

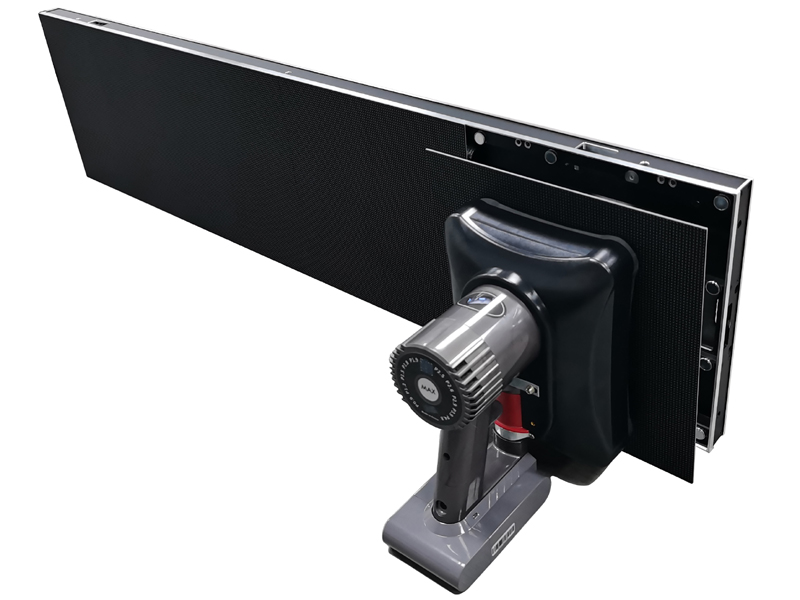

Maintenance	Full Front service	Full Front service	Full Front service	Full Front service	Full Front service
Operating Humidity	10-90% RH	10-90% RH	10-90% RH	10-90% RH	10-90% RH
Life Span	100,000Hours	100,000Hours	100,000Hours	100,000Hours	100,000Hours
IP rating(Front/Rear)	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21
