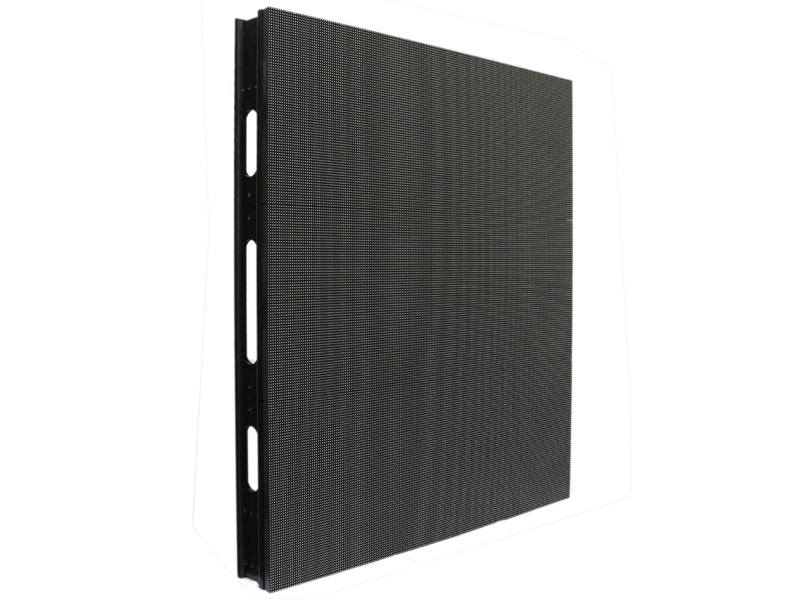

Outdoor Front Service LED Display

Outdoor Front Service LED Display, LED screen and video wall.

Whatsapp
Email
Category:
Pixel Pitch4.16mm5mm6.25mm8.33mm10mm
Physical Density57600/㎡40000/㎡25600/㎡14400/㎡10000/㎡
LED ShapeSMD1921SMD1921SMD2727SMD2727SMD2727
LED Configuration1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Drive Mode1/6 Scan1/6 Scan1/6 Scan1/3 Scan1/2 Scan
Module Size400x300mm400x300mm400x300mm400x300mm400x300mm
Cabinet Size800x900mm
800x1200mm		800x900mm
800x1200mm		800x900mm
800x1200mm		800x900mm
800x1200mm		800x900mm
800x1200mm
Cabinet Resolution192x216
192x288		160x180
160x240		128x144
128x192		96x108
96x144		80x90
80x120
Cabinet Weight22.5kg/pc
28kg/pc		22.5kg/pc
28kg/pc		22.5kg/pc
28kg/pc		22.5kg/pc
28kg/pc		22.5kg/pc
28kg/pc
Brightness≥6500cd/㎡≥6500cd/㎡≥6500cd/㎡≥6500cd/㎡≥6500cd/㎡
Contrast≥5000:1≥5000:1≥5000:1≥5000:1≥5000:1
Viewing angle(H/V)160°/160°160°/160°160°/160°160°/160°160°/160°
View Distance≥4m≥5m≥6m≥8m≥10m
Gray Scale16bits16bits16bits16bits16bits
Color Capacity281 trillion281 trillion281 trillion281 trillion281 trillion
Maximum Power780W/㎡780W/㎡780W/㎡780W/㎡780W/㎡
Average Power200-300W/㎡200-300W/㎡200-300W/㎡200-300W/㎡200-300W/㎡
Input voltage110/220V110/220V110/220V110/220V110/220V
Refresh Rate≥1920HZ≥1920HZ≥1920HZ≥1920HZ≥1920HZ
ServiceFront & Back ServiceFront & Back ServiceFront & Back ServiceFront & Back ServiceFront & Back Service
Working Temperature (-20℃～+50℃) (-20℃～+50℃) (-20℃～+50℃) (-20℃～+50℃) (-20℃～+50℃)
Operating Humidity10-90% RH10-90% RH10-90% RH10-90% RH10-90% RH
IP rating(Front/Rear)IP65/IP65IP65/IP65IP65/IP65IP65/IP65IP65/IP65
Life Span100,000Hours100,000Hours100,000Hours100,000Hours100,000Hours
