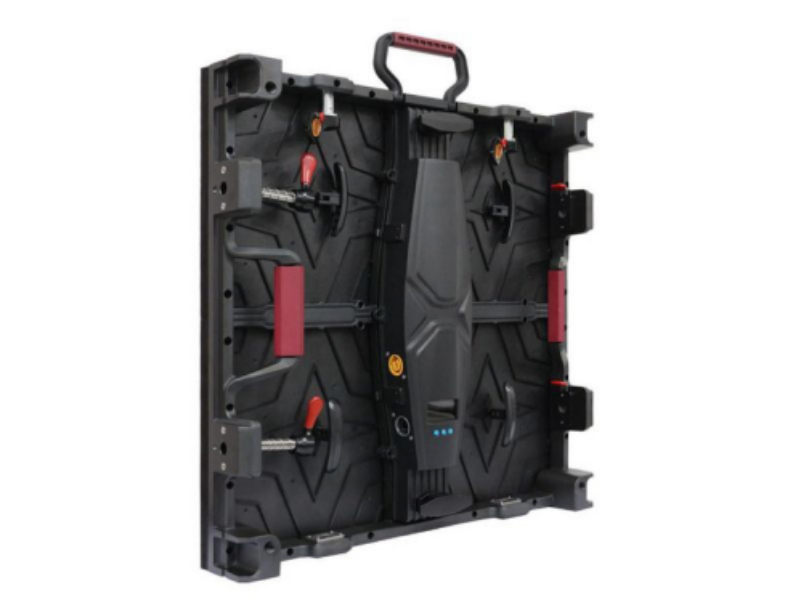

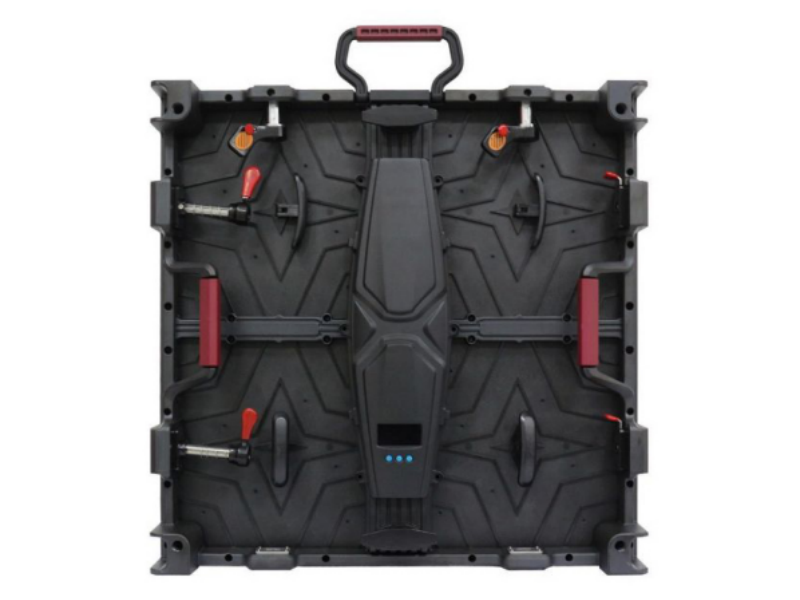

Indoor Rental Front service LED display

Home » Product » Indoor Rental Front service LED display

Indoor Front service LED display

Category: Accessories

Pixel Pitch	1.95mm	2.5mm	2.604mm	2.98mm	3.91mm
Physical Density	262144/㎡	160000/㎡	147456/㎡	112896/㎡	65536/㎡
LED Shape	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121
LED Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Drive Mode	1/32 Scan	1/25 Scan	1/32 Scan	1/28 Scan	1/16 Scan
Cabinet Size	500x500mm	500x500mm	500x500mm	500x500mm	500x500mm
Cabinet Resolution	256x256	200x200	192x192	168x168	128x128
Cabinet Weight	7.5kg/pc	7.5kg/pc	7.5kg/pc	7.5kg/pc	7.5kg/pc
Brightness	≥1000cd/㎡	≥1000cd/㎡	≥1000cd/㎡	≥1000cd/㎡	≥1000cd/㎡
Contrast	≥5000:1	≥5000:1	≥5000:1	≥5000:1	≥5000:1
Viewing angle(H/V)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
View Distance	≥2m	≥2.5m	≥2.6m	≥3m	≥4m
Gray Scale	16bits	16bits	16bits	16bits	16bits
Color Capacity	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Maximum Power	150 W/PC	150 W/PC	150 W/PC	150 W/PC	150 W/PC
Average Power	60 W/PC	60 W/PC	60 W/PC	60 W/PC	60 W/PC
Input voltage	110 / 220V	110 / 220V	110 / 220V	110 / 220V	110 / 220V
Refresh Rate	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Working Temperature	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)	(-20℃～+50℃)
Operating Humidity	10-90% RH	10-90% RH	10-90% RH	10-90% RH	10-90% RH
Life Span	100,000Hours	100,000Hours	100,000Hours	100,000Hours	100,000Hours
IP rating(Front/Rear)	IP31/IP31	IP31/IP31	IP31/IP31	IP31/IP31	IP31/IP31
Service	Front and Rear	Front and Rear	Front and Rear	Front and Rear	Front and Rear
