Foldable LED Poster Screen 640x1920mm
Foldable LED Poster Screen 640x1920mm
- Screen size: 640x1920mm
- Pixel Pitch: P1.25mm, P1.53mm, P1.86mm, P2mm, P2.5mm.
- Modules adopt GOB technology to protect the LED, resulting in a low failure rate.
- Support Cloud / 4G internet remote cluster control.
- Multiple inputs: HDMI / USB / Ethernet/ WIFI.
- Portable with wheels: easy to move. It can be single use or cascade a large screen.
- Foldable cabinet is easy loading and transportation, saving storage space.
- No structure required, plug and play, shortening setup time.
- Versatile: suitable for shows, event, store and temporary stage.

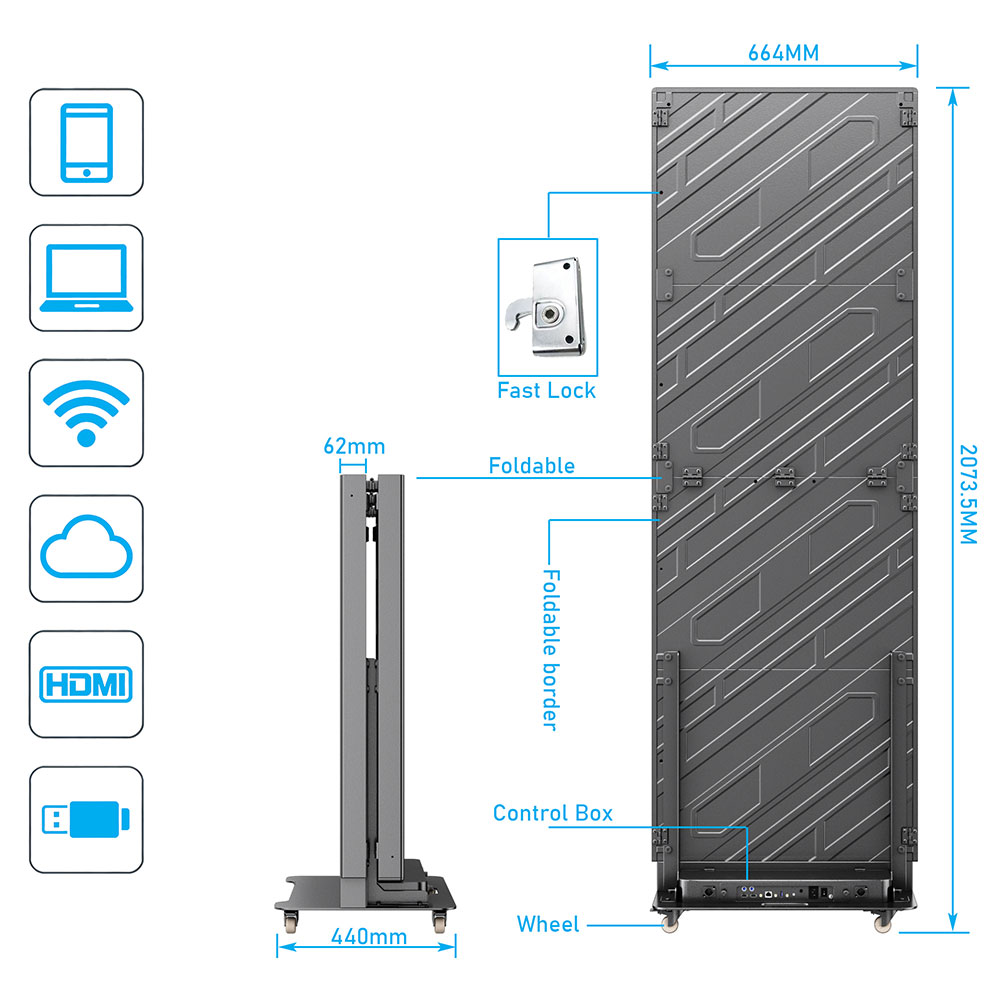

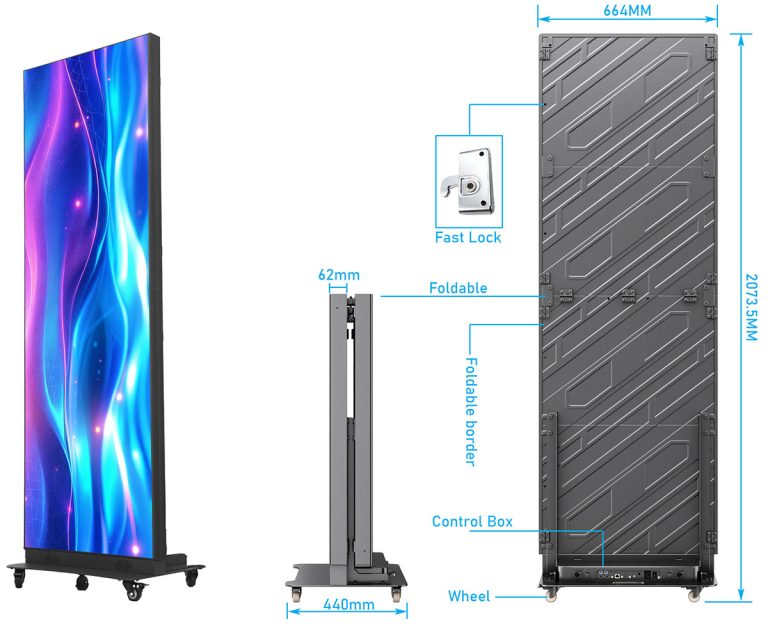

Cabinet Size

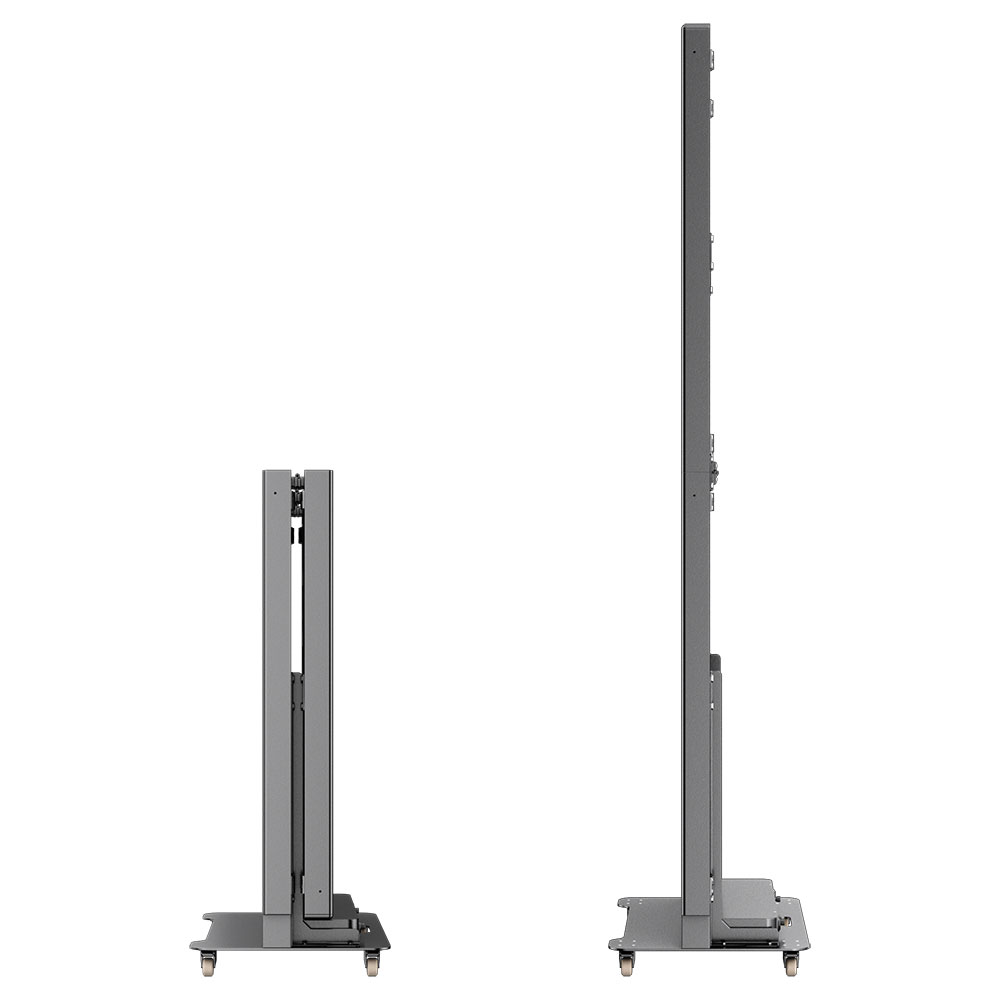

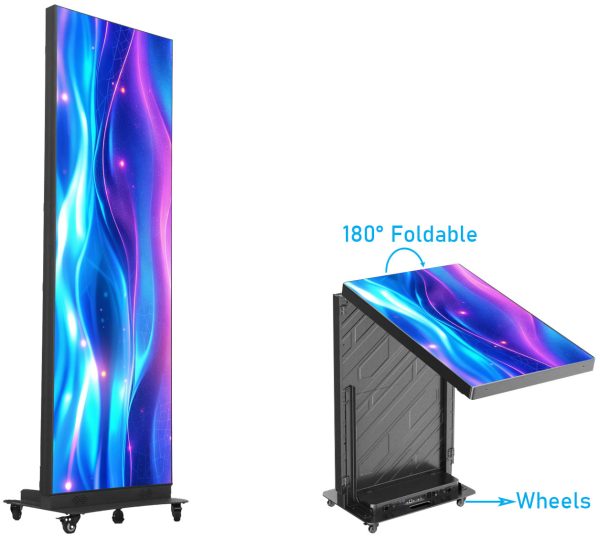

The cabinet can be 180°Foldable, also with wheels for easy transport
LED Poster can be single use or cascade a large screen

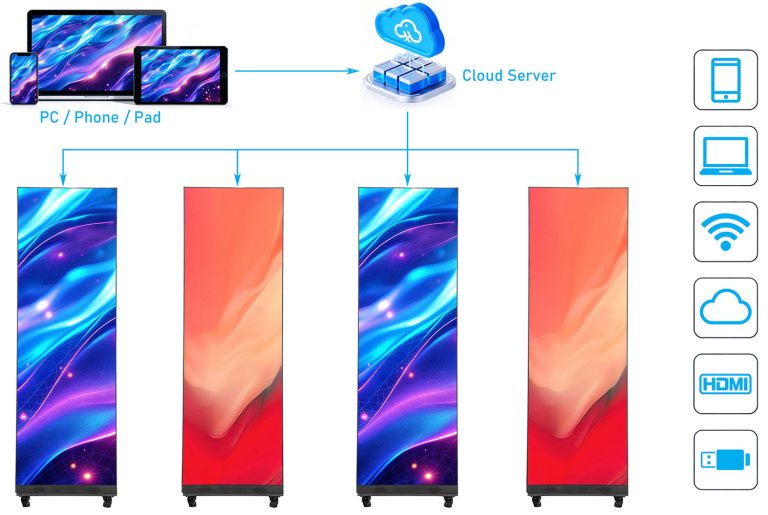

Support Cloud / 4G internet remote cluster control

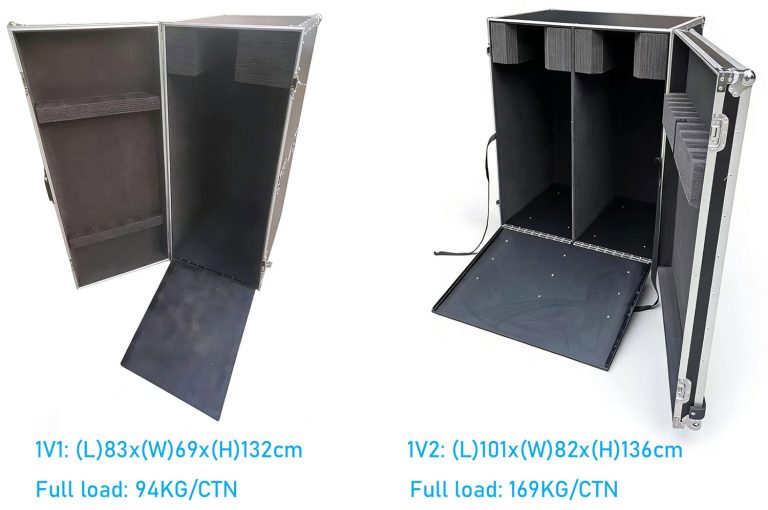

Flight cases with sloping ramps are easy to load and shipping
| Key Attributes | P1.25mm | P1.53mm | P1.86mm | P2mm | P2.5mm |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
| Physical Density | 640,000 dots/m² | 422,500 dots/m² | 288,906 dots/m² | 250,000 dots/m² | 160,000 dots/m² |
| LED Type | SMD1010 (GOB) | SMD1010 (GOB) | SMD1212 (GOB) | SMD1515 (GOB) | SMD1515 (GOB) |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 320 × 160mm | 320 × 160mm | 320 × 160mm | 320 × 160mm | 320 × 160mm |
| Module Resolution | 256 × 128 | 208 × 104 | 172 × 86 | 160 × 80 | 128 × 64 |
| Scan Mode | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Size | 664 × 2073 × 440mm | 664 × 2073 × 440mm | 664 × 2073 × 440mm | 664 × 2073 × 440mm | 664 × 2073 × 440mm |
| Cabinet Resolution | 512 × 1536 | 416 × 1248 | 344 × 1032 | 320 × 960 | 256 × 768 |
| Module Qty / Cabinet | 2 × 12 | 2 × 12 | 2 × 12 | 2 × 12 | 2 × 12 |
| Cabinet Weight | 54.6 kg/pc | 54.6 kg/pc | 54.6 kg/pc | 54.6 kg/pc | 54.6 kg/pc |
| Brightness | 600 nits | 600 nits | 600 nits | 600 nits | 600 nits |
| Contrast Ratio | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| Min. Viewing Distance | ≥1.2m | ≥1.5m | ≥1.8m | ≥2.0m | ≥2.5m |
| Gray Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Color Depth | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Max. Power Consumption | 600W/pc | 600W/pc | 600W/pc | 600W/pc | 600W/pc |
| Avg. Power Consumption | 200W/pc | 200W/pc | 200W/pc | 200W/pc | 200W/pc |
| Input Voltage | AC110 / 220V | AC110 / 220V | AC110 / 220V | AC110 / 220V | AC110 / 220V |
| I/O Interface | USB, HDMI, Wi-Fi, LAN | USB, HDMI, Wi-Fi, LAN | USB, HDMI, Wi-Fi, LAN | USB, HDMI, Wi-Fi, LAN | USB, HDMI, Wi-Fi, LAN |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Operating Temperature | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ |
| Operating Humidity | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH |
| Lifespan | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
