Indoor Flexible LED Module Display 320x160mm
Indoor Flexible LED Module Display 320x160mm
- Module size: 320x160mm.
- Pixel Pitch: P0.62mm, P0.78mm, P0.93mm, P1.25mm, P1.56mm, P1.87mm.
- Ultra thin: The module thickness only 1cm.
- The flex module features a silicone frame, it can be bend as cylindrical, wavy, arc-shaped, etc.
- Front Service: The module adopt magnetic design, it can be removed from the front, and save maintenance time greatly.
- High refresh rate and contrast, delicate and uniform colors, not glaring when viewed in close distance.
- Eye-catching: LED flexible screens can be installed into various shapes, which can greatly attract customers’ attention in shopping malls, stages, exhibition halls and so on.

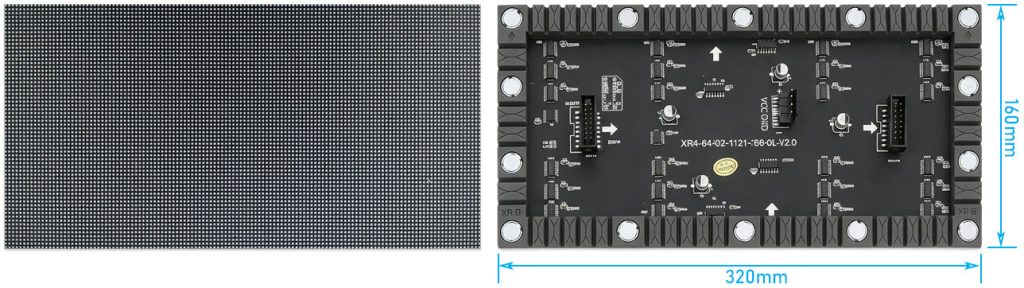

Soft LED Module size

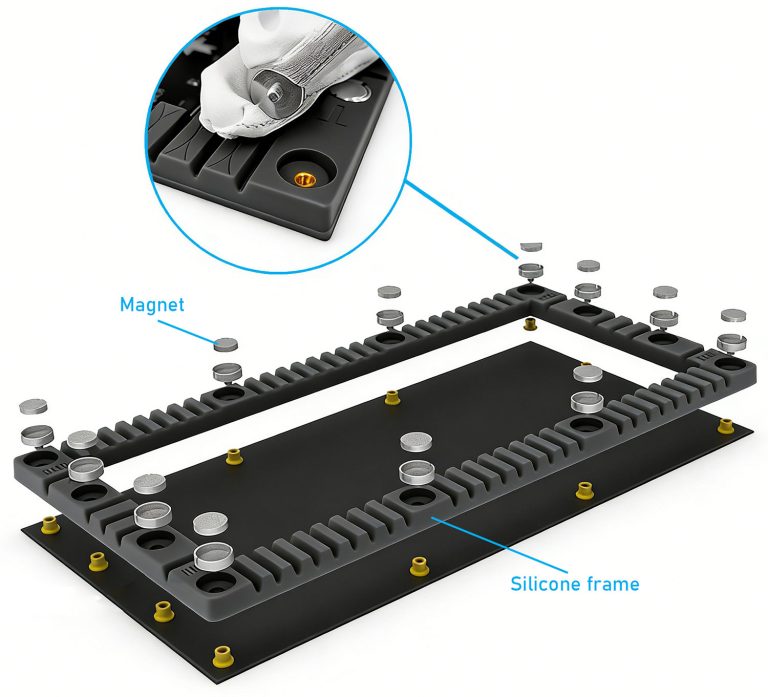

The flex module features a silicone frame for easy bending.

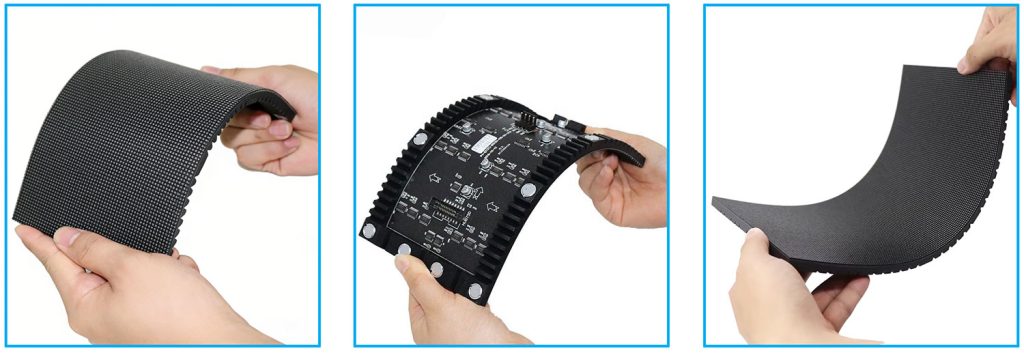

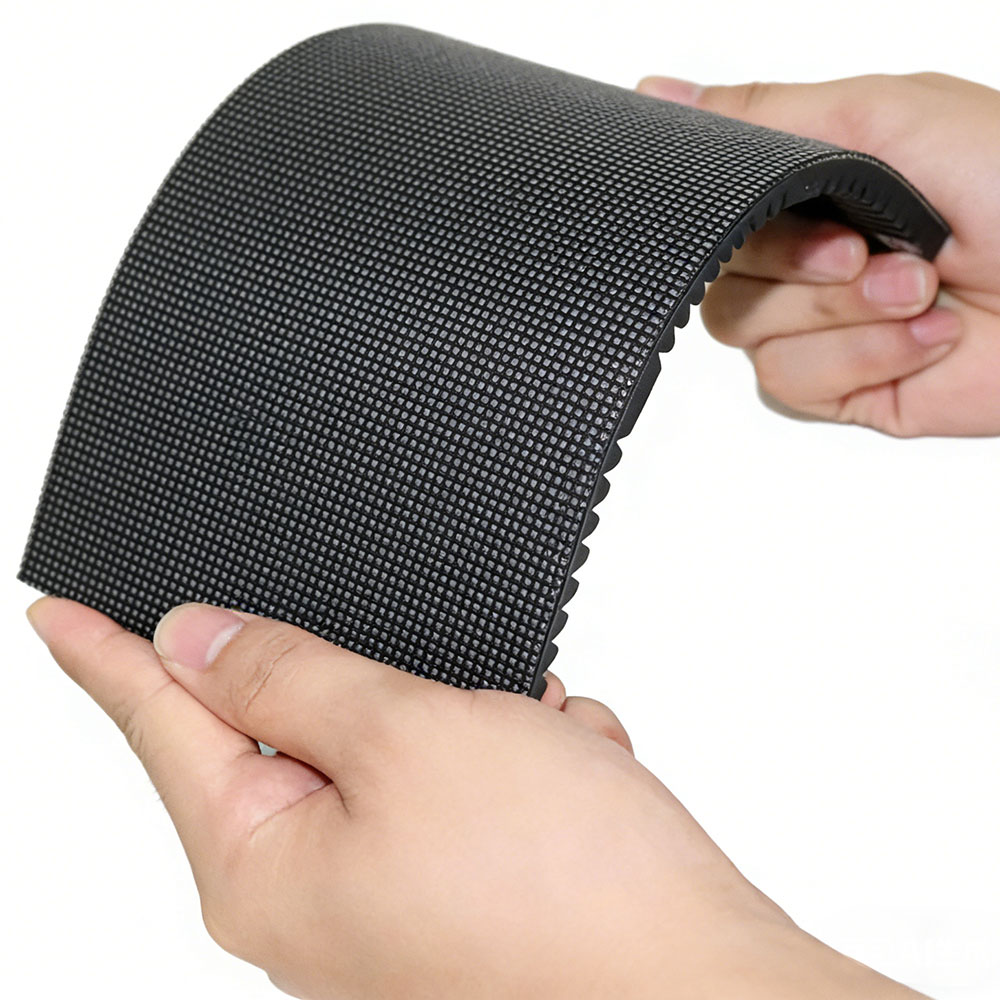

Flexible module can be bent at any angle

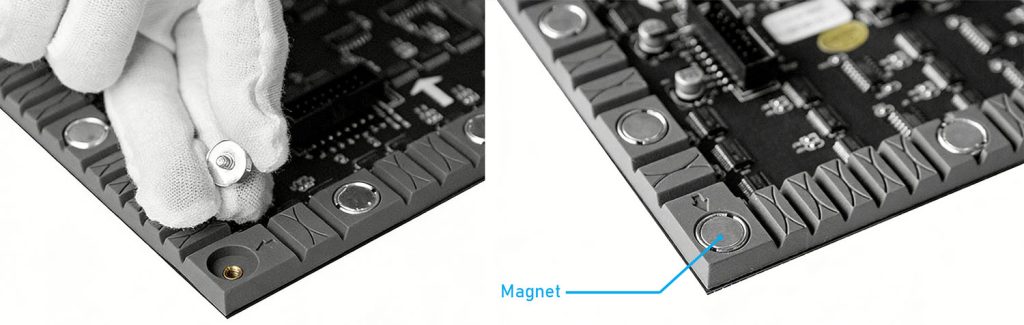

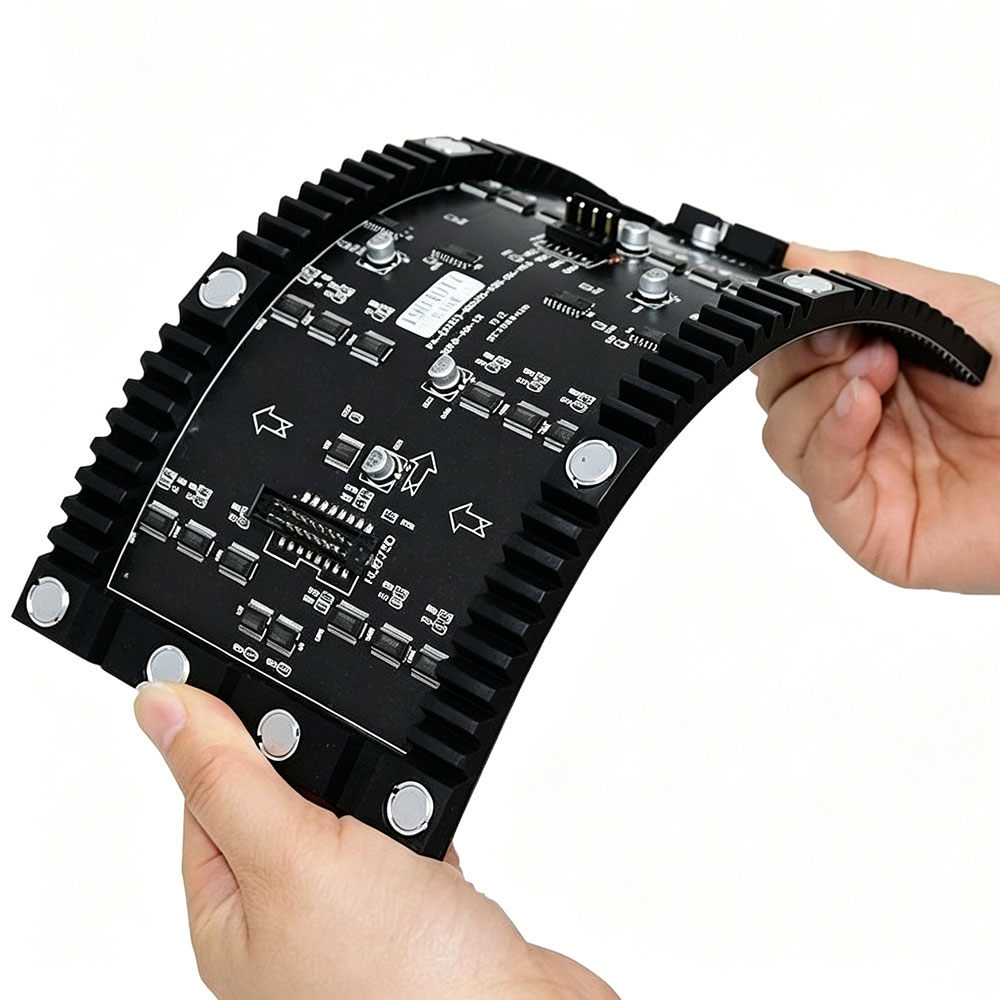

Magnet for easy installation
Soft LED Screen installation

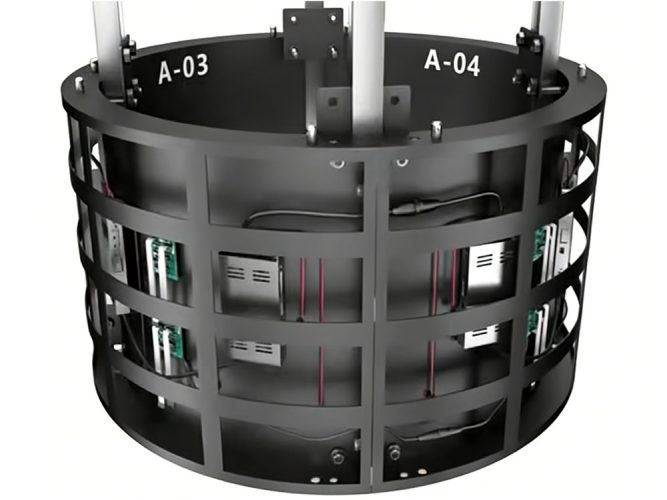

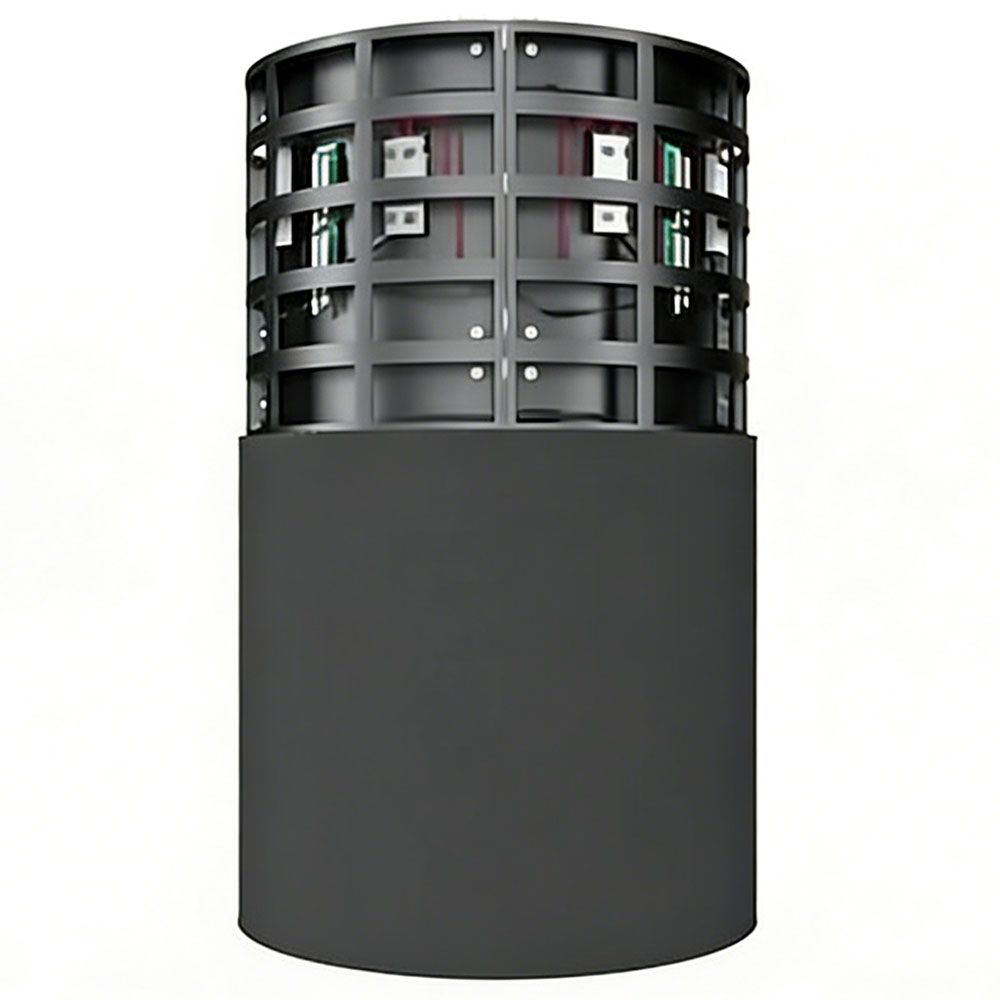

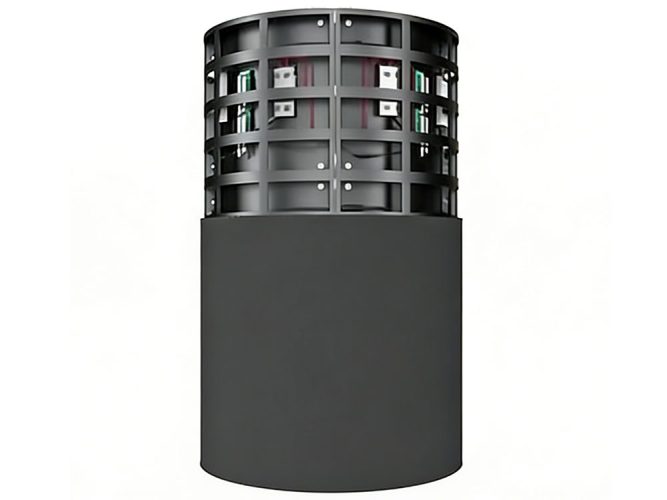

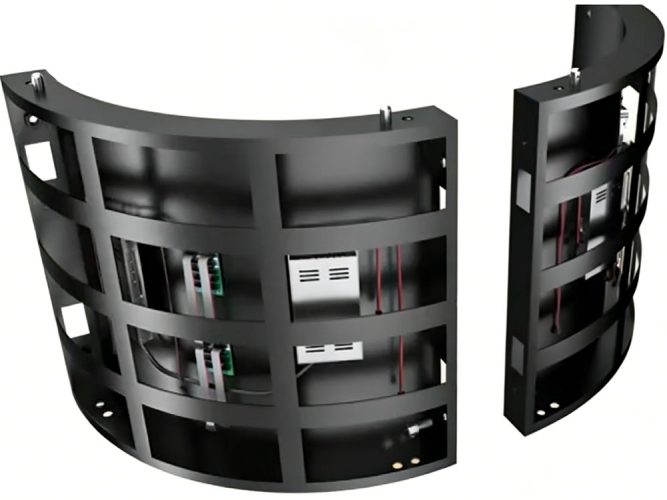

1. Install curved cabinets
2. Connect power and date cables

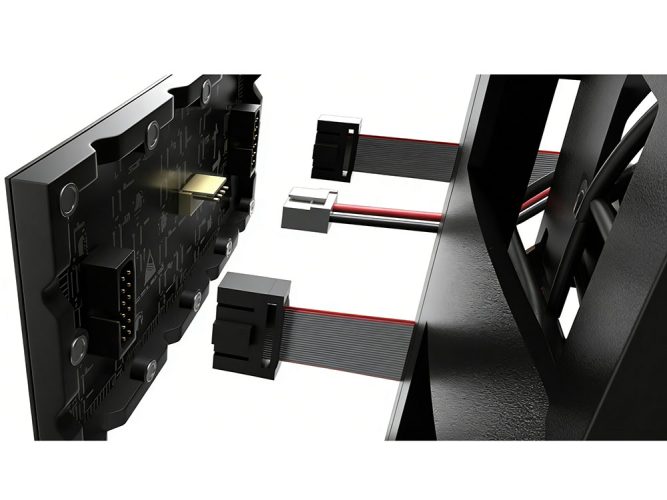

3. Connect module to power and Flat cables.
2. Install all the flexible led module to the cabinet

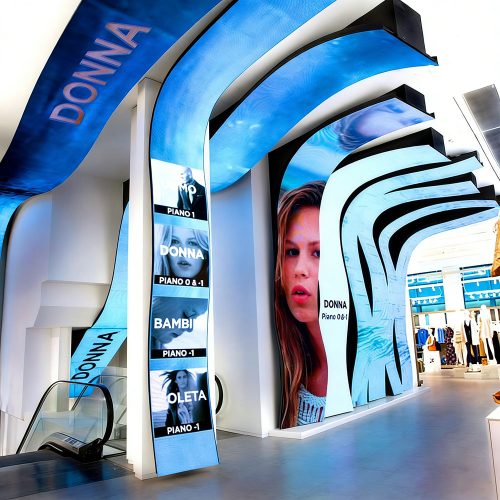

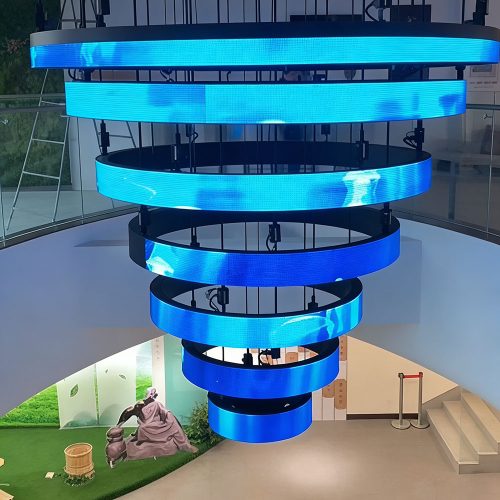

Suitable for different application
| Key Attributes | P1.25mm | P1.538mm | P1.86mm | P2mm | P2.5mm | P3.076mm | P4mm |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| Physical Density | 640,000 dots/m² | 422,500 dots/m² | 288,906 dots/m² | 250,000 dots/m² | 160,000 dots/m² | 105,688 dots/m² | 62,500 dots/m² |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm | 320 × 160 × 8.6mm |
| Module Resolution | 256 × 128 | 208 × 104 | 172 × 86 | 160 × 80 | 128 × 64 | 104 × 52 | 80 × 40 |
| Scan Mode | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan | 1/20 Scan |
| Module Weight | 0.33 kg/pc | 0.34 kg/pc | 0.34 kg/pc | 0.34 kg/pc | 0.29 kg/pc | 0.29 kg/pc | 0.28 kg/pc |
| Brightness | 600 nits | 600 nits | 600 nits | 600 nits | 600 nits | 600 nits | 600 nits |
| Contrast Ratio | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 | 10,000:1 |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| Min. Viewing Distance | ≥1.2m | ≥1.5m | ≥1.8m | ≥2.0m | ≥2.5m | ≥3.0m | ≥4.0m |
| Gray Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Color Depth | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Max. Power Consumption | 30W/pc | 22.5W/pc | 22W/pc | 23W/pc | 21W/pc | 21W/pc | 18W/pc |
| Avg. Power Consumption | 10W/pc | 7.5W/pc | 7.3W/pc | 7.7W/pc | 7W/pc | 7W/pc | 6W/pc |
| Input Voltage | 5V DC | 5V DC | 5V DC | 5V DC | 5V DC | 5V DC | 5V DC |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Operating Temperature | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ | -20℃ ～ +55℃ |
| Operating Humidity | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH | 10% – 90% RH |
| Lifespan | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
