Indoor Curved Lock Rental LED Screen
Indoor Curved Lock Rental LED Screen
- Cabinet size: 500x500mm or 500x1000mm.
- Pixel pitch: P1.25mm, P1.56mm, P1.95mm, P2.6mm, P2.97mm, P3.91mm, P4.81mm, P6.25mm.
- Light weight: 6kg/pc (500*500) and 13kg/pc (500*1000)
- Four sides fast lock design, ensures high efficiency in installation.
- Fanless design: The aluminum alloy cabinet has good thermal conductivity, so it no need cooling fan, noise free.
- The module with magnet, it can be direct replaced from the front, resulting in high maintenance efficiency.
- The cabinet design with ±10 degree curved lock: it can be assembled into cylinder and arc, to meet the requirement of creative stage screen.
- High refresh rate and contrast, delicate and uniform colors, not glaring when viewed in close distance.

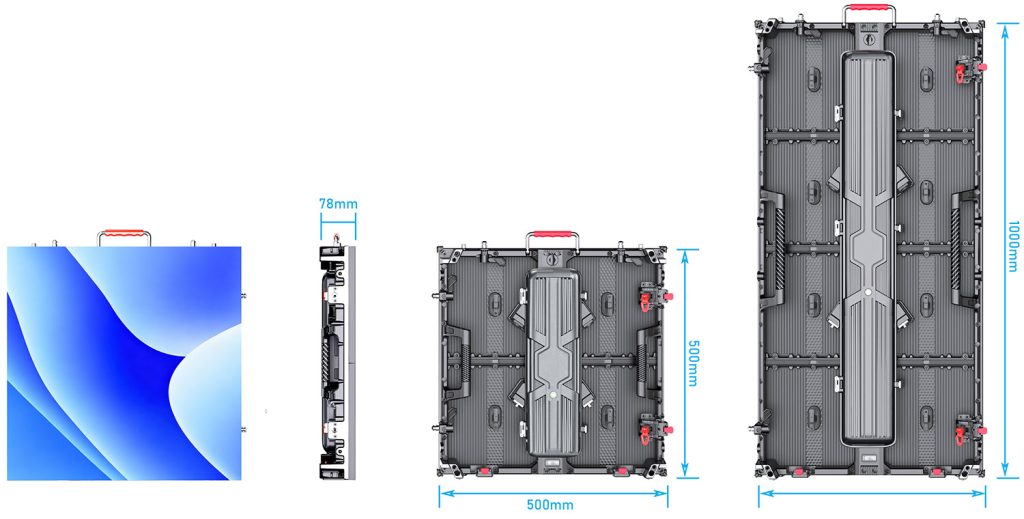

Cabinet Size

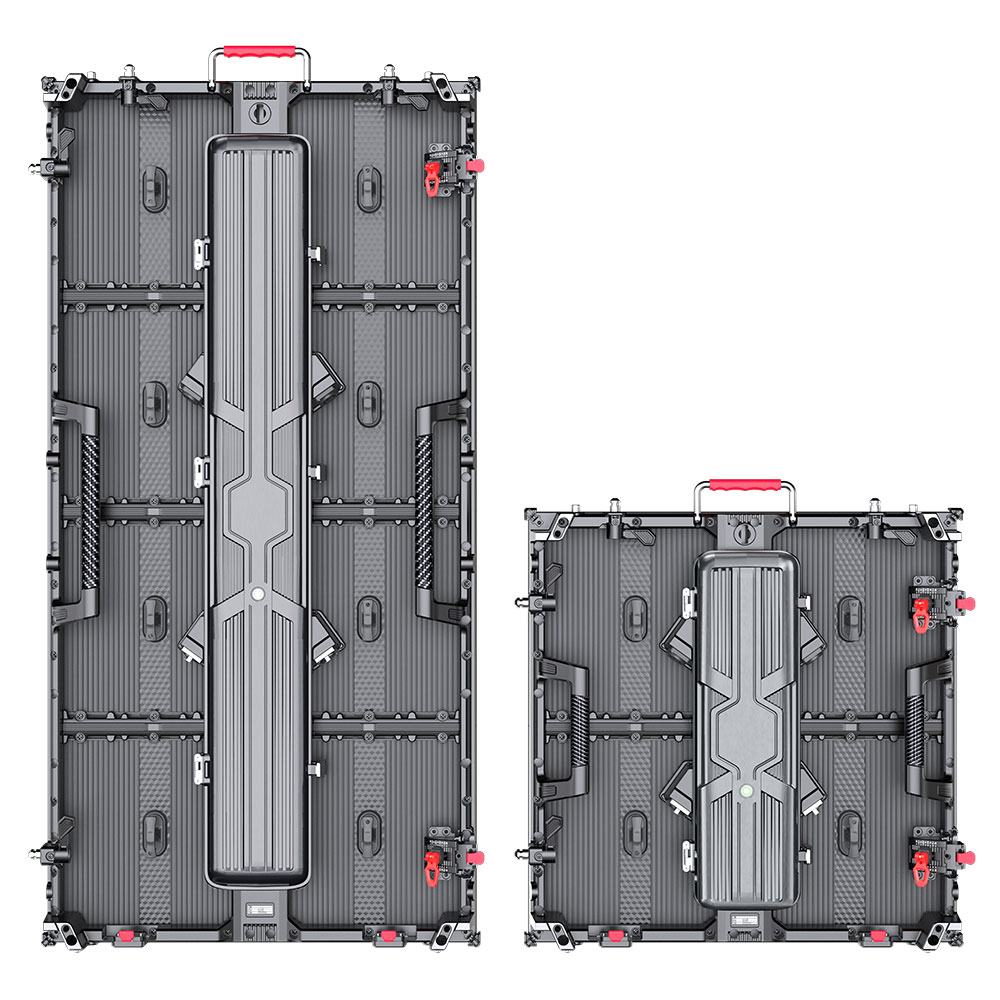

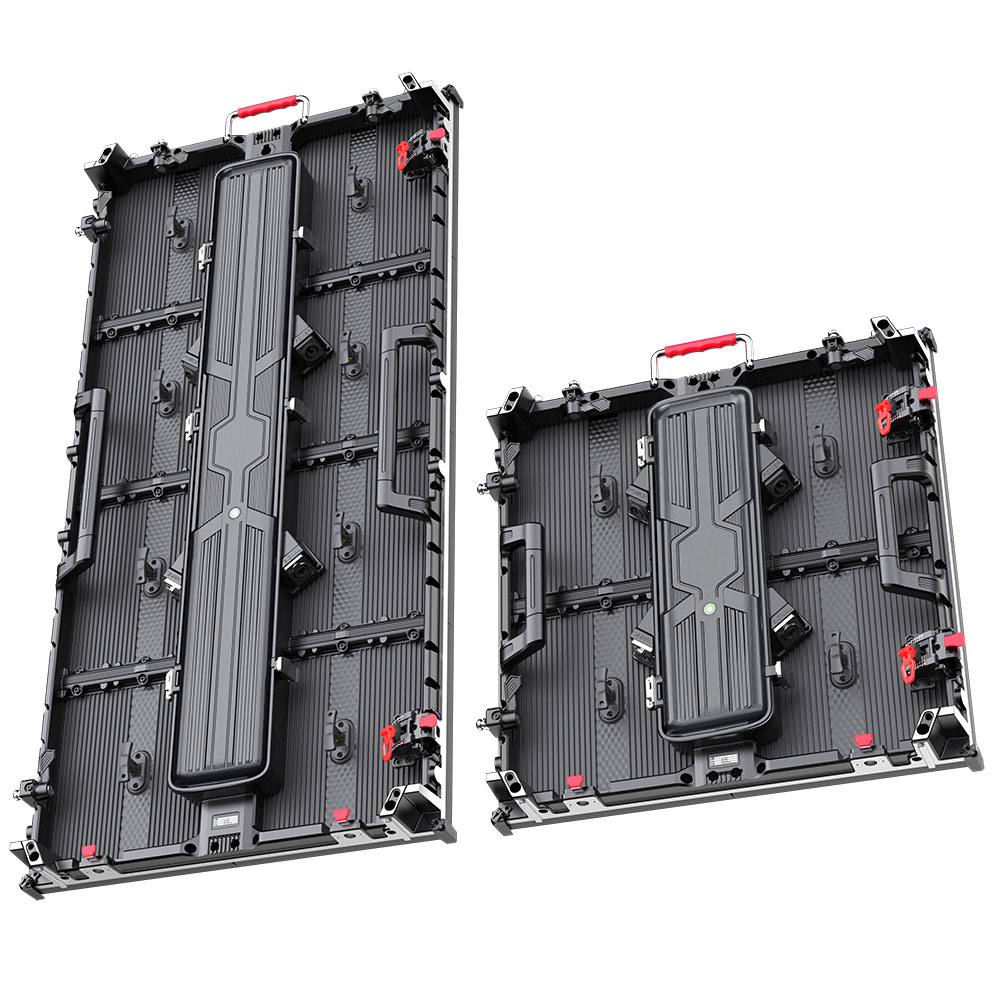

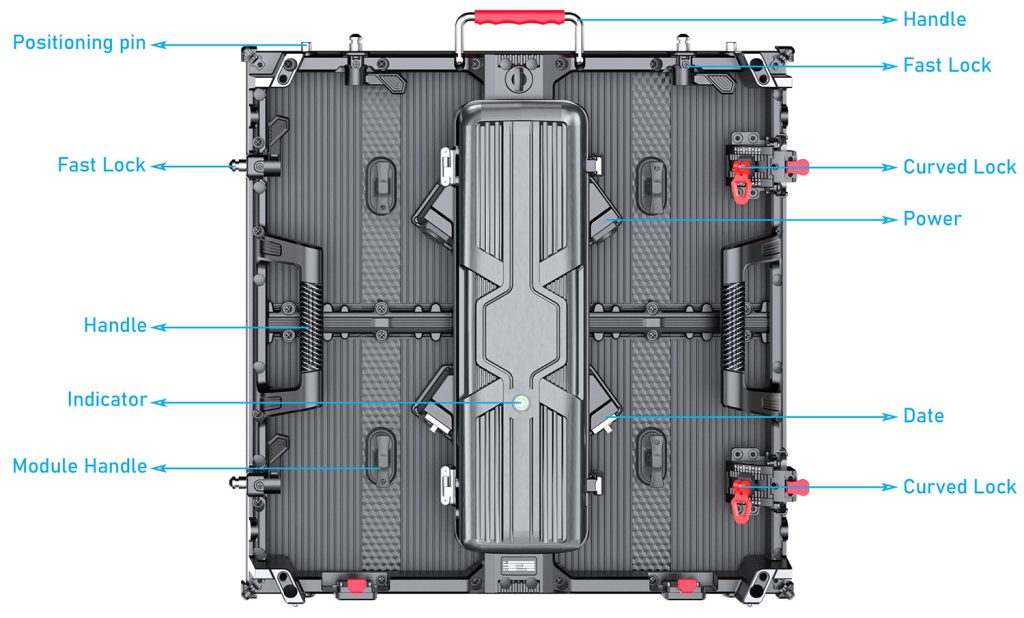

Cabinet details

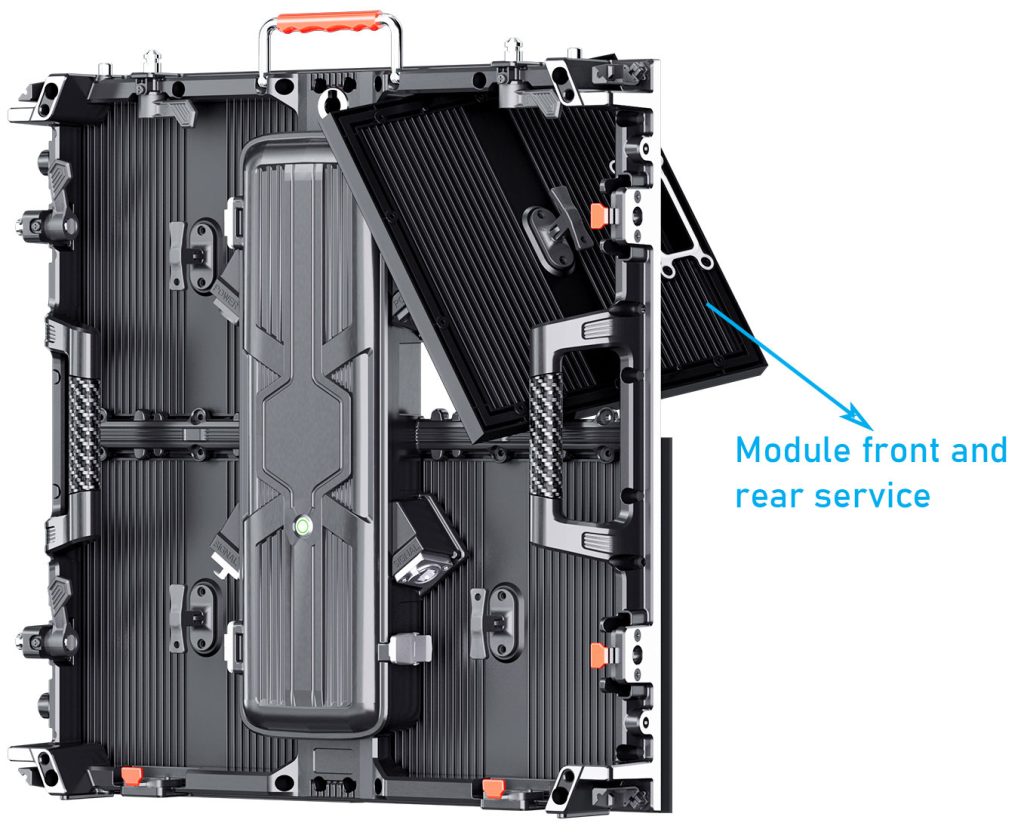

LED module front and rear service
The LED module design with Magnet, so it’s easy to replace both from the front and rear. It is very convenient to use during the rental shows.

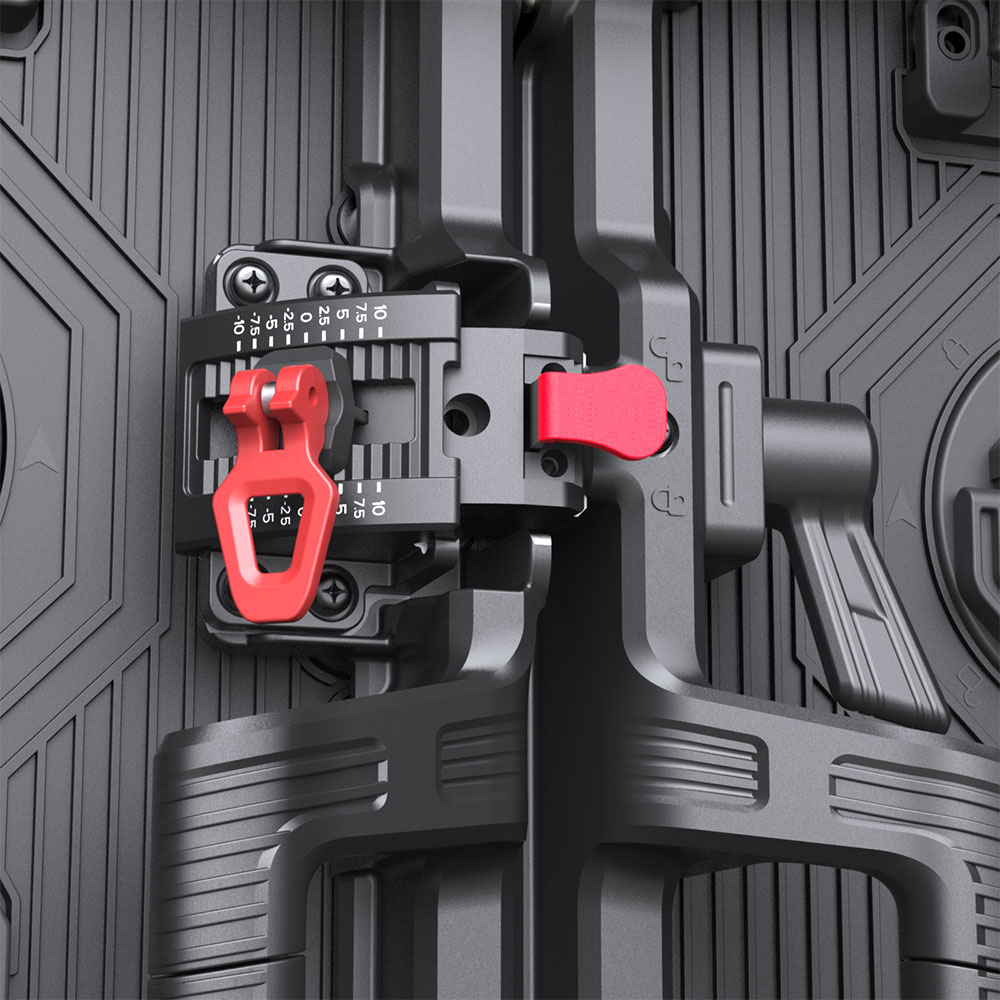

±10 degree arc lock design
The cabinet design with ±10 degree curved lock, it can be installed on both inner and outer arcs.
Suitable for different mounting
Floor mounting
Hanging Installation

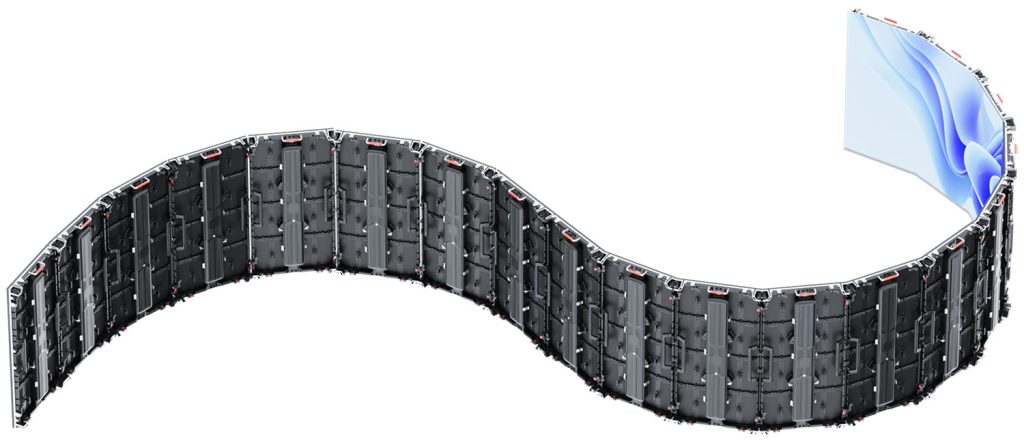

This cabinet is suitable for both inward and outward curved mounting.
